PCB & Surface Mount Screw Terminals & Blocks

PCB & Surface Mount Screw Terminals Catalog (Click to view)

PCB & Surface Mount Screw Terminals & Blocks

BlockMaster Electronic’s 25A to 150A PCB and Surface Mount Screw Terminals & Blocks are suitable for today’s requirements of high current terminations on printed circuit boards. Available in both straight and right angle versions for thru hole terminals. They can be supplied with or without screws.

ItemImageCatalogDrawingCurrent

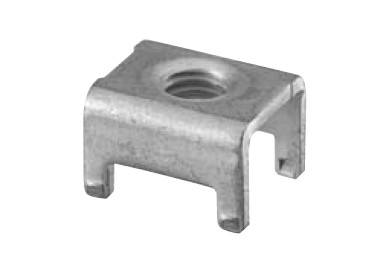

OP-055-M5-L1op-055_imageCatalogProduct Drawing80A
OP-055-M5-L2op-055_imageCatalogProduct Drawing80A

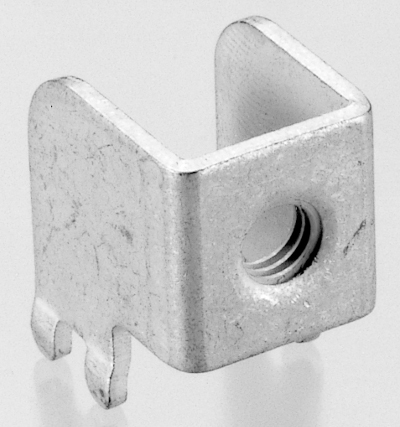

OP-075-M5op-075_imageCatalogProduct Drawing110A

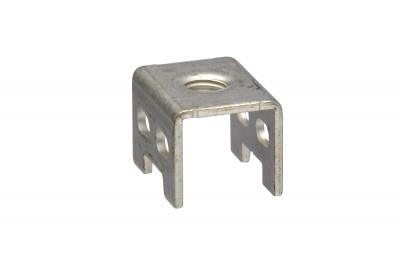

OP-487-M6op-487_imageCatalogProduct Drawing100A

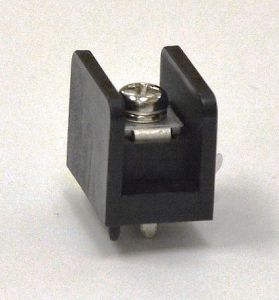

OP-930-P35op-930_imageCatalogProduct Drawing60A

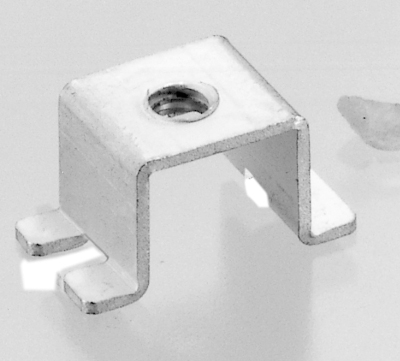

OT-002-M3ot-002_imageCatalogProduct Drawing10A

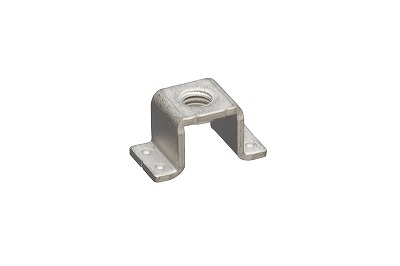

OT-003-M4-L10ot-003-m4-lx_imageCatalogProduct Drawing30A
OT-003-M4-L8ot-003-m4-lx_imageCatalogProduct Drawing30A

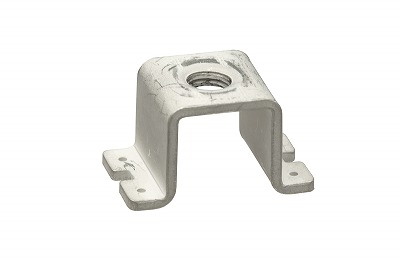

OT-004-M5ot-004-m5_imageCatalogProduct Drawing85A

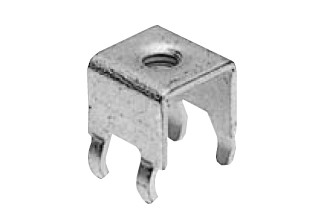

OT-009-M3ot-009-m_imageCatalogProduct Drawing25A
OT-009-M4ot-009-m_imageCatalogProduct Drawing25A

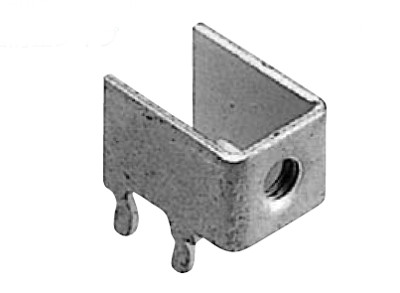

OT-010-M3ot-010_imageCatalogProduct Drawing25A
OT-010-M4ot-010_imageCatalogProduct Drawing25A

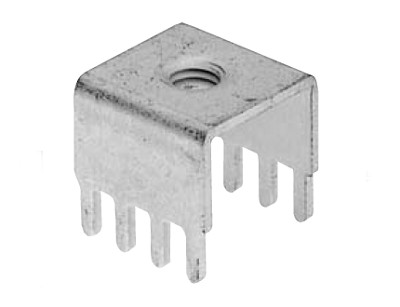

OT-016-M5-L10ot-016_imageCatalogProduct Drawing120A
OT-016-M5-L8ot-016_imageCatalogProduct Drawing120A
OT-016-M6-L10ot-016_imageCatalogProduct Drawing120A
OT-016-M6-L8ot-016_imageCatalogProduct Drawing120A

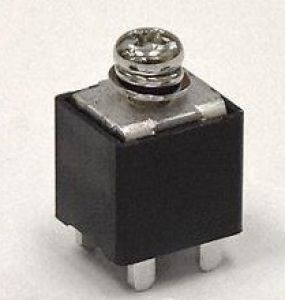

OT-017F-M4ot-017_imageCatalogProduct Drawing40A
OT-047-M4ot-047_imageCatalogProduct Drawing30A

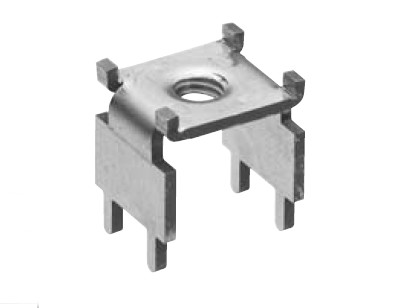

OT-048-M5ot-048_imageCatalogProduct Drawing60A
OT-200-M6-L15ot-200_imageCatalogProduct Drawing150A
OT-200-M6-L22ot-200_imageCatalogProduct Drawing150A

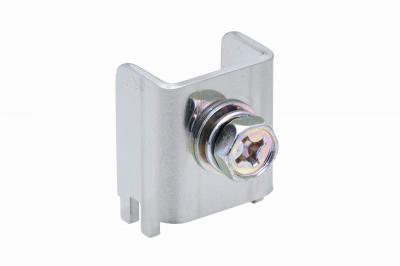

OT-201-M6ot-201_imageCatalogProduct Drawing150A
OT-201-M8ot-201_imageCatalogProduct Drawing150A
